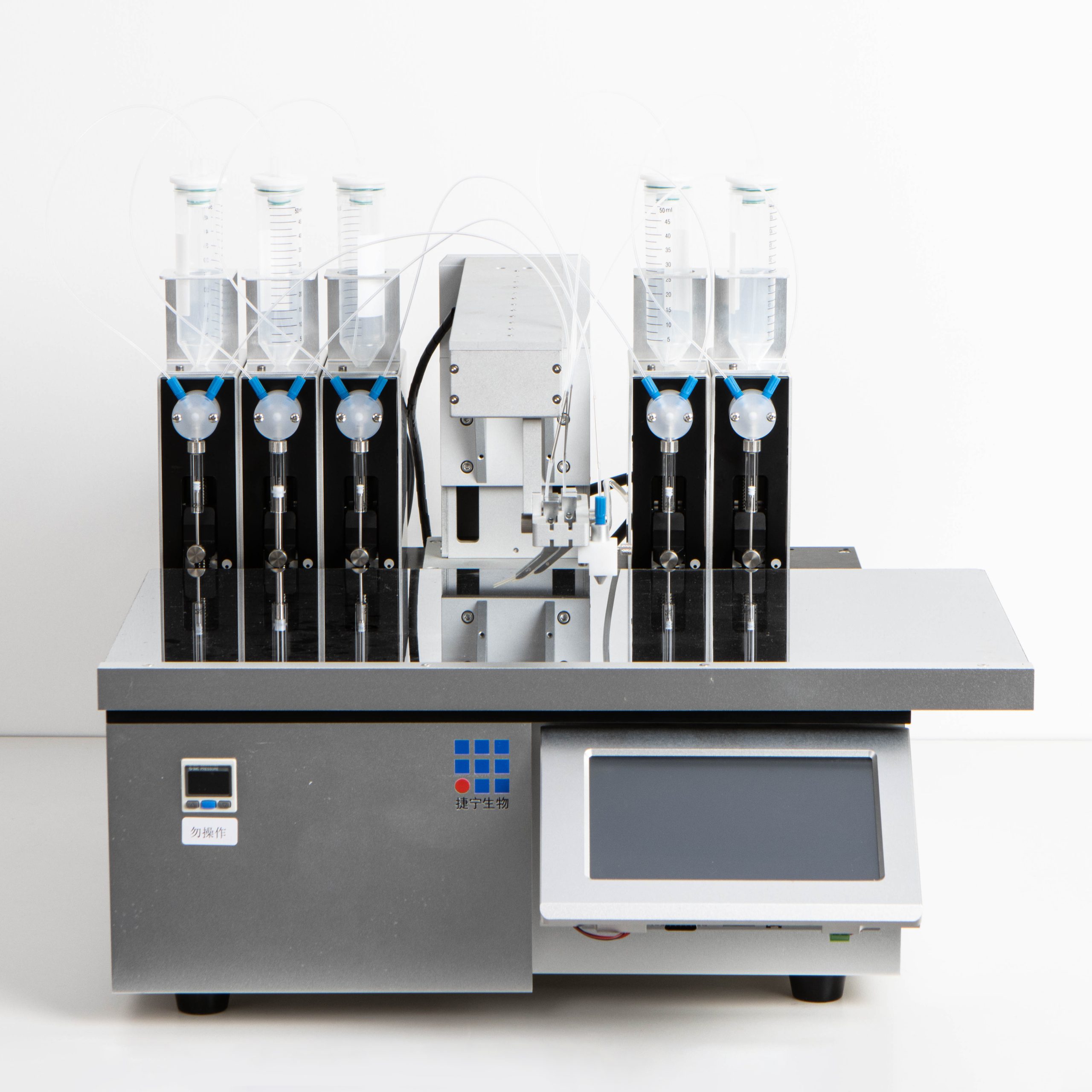

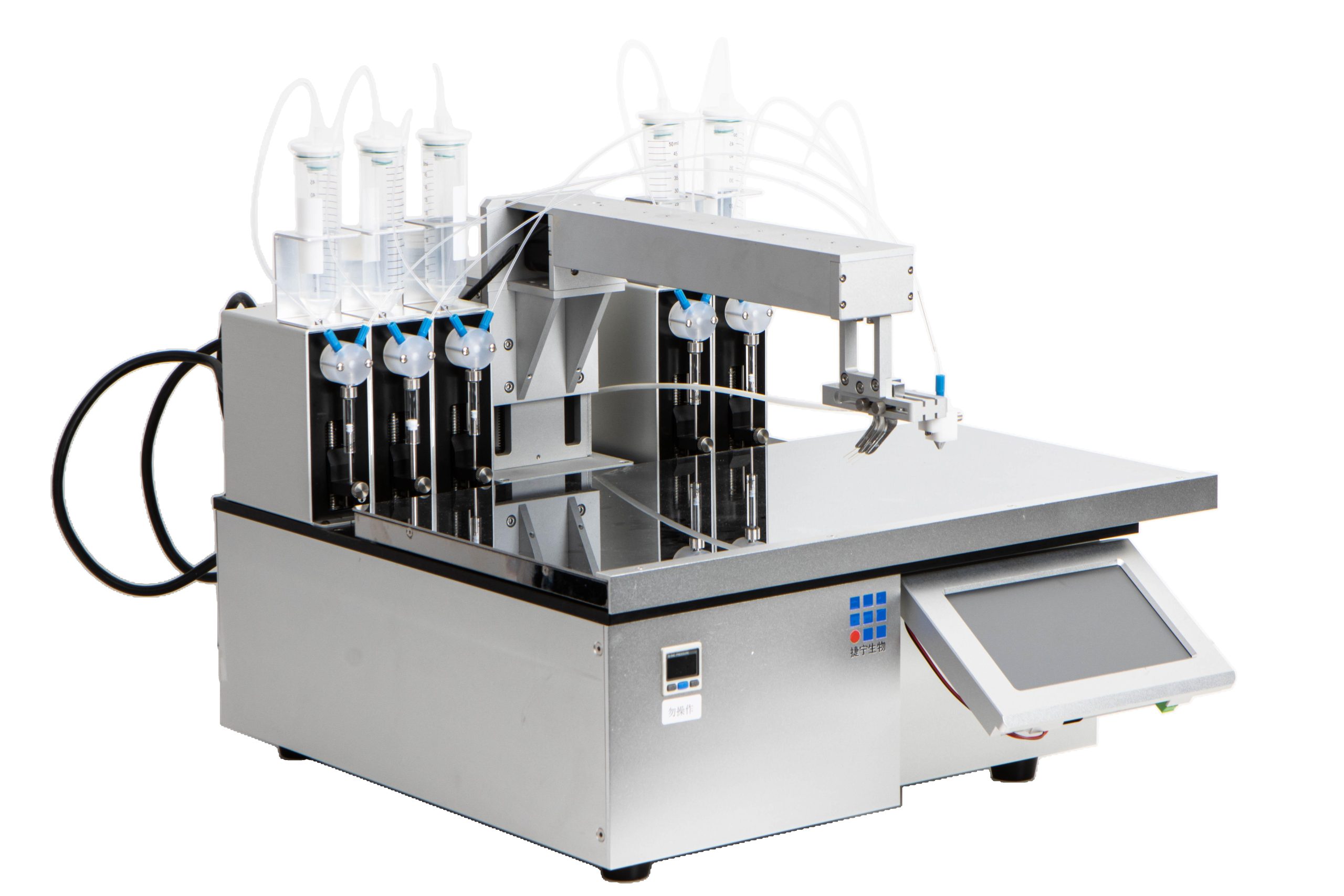

Large Platform Sprayer CM3000

Model: XYZ3000 (number of spraying lines can be customized)
Application: Suitable for both the research and development of microantibodies as well as large-scale production, for qualitative products using colloidal gold as well as high homogeneity requirements for colloidal gold and fluorescence quantitative test strips.

– Motor-controlled gear rack, with longer usage time
– Platform X.Y.Z can be adjusted in three dimensions, operated via touchscreen, simple and user-friendly
– Through parameter settings, it is convenient to perform automatic continuous operation and micro-operation
– Independently developed gold spraying nozzle, through differential head structure, it is easy to adjust the height and opening size of the spraying nozzle, and can precisely control the thickness of the spray line
– Through parameter settings, the spacing of lines, spray volume, length and the number of repetitions can be freely set
– Multiple gold spraying lines can be configured
– Quantitative suction function, facilitating research and development
– Emptying function by just pressing one key, enabling easy recovery of remaining solution

Technical Specifications:
1. Weight: 28KG
2. Overall dimensions: 470(L) × 480(W) × 395(H) mm
3. Number of programs can be stored: 15
4. Operating range: 120 x 400 mm

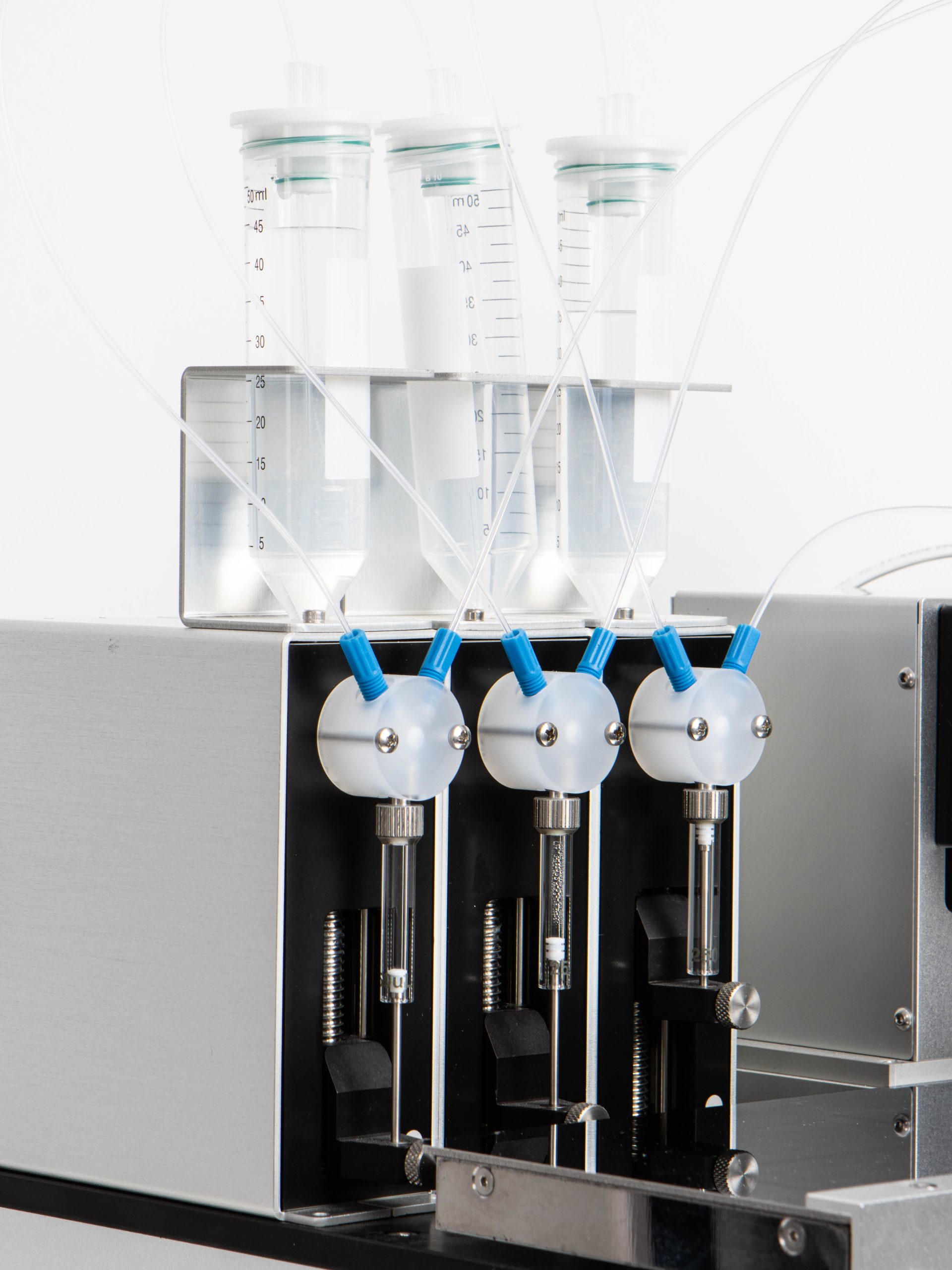

5. Gold spraying syringe capacity: 500ul, 1000ul available
6. Spraying volume error: ±0.1%
7. Spraying volume accuracy: 0.01ul
8. Positioning accuracy: ±0.1mm
9. Platform moving speed: 10 – 150mm/s (adjustable to 200mm/s)
10. Minimum line spacing: 2mm
11. Spraying volume: 0.1 – 30ul/cm
12. Spraying air source: Precision digital pressure gauge
13. Voltage/power: 220V/50HZ, 300W
